MPS 355 D4 F4 30 – Ruck smoke extractor box fan swing-out and frequency-controlled – Ruck



The Ruck smoke box fan (MPS DF series) is equipped with a frequency-driven motor mounted outside the airflow. This design ensures that dirty or contaminated air and gases up to 200 °C do not pass through the motor. The fan can even withstand short-term temperatures up to 400 °C. With the motor positioned outside the air stream, this smoke box fan is ideal for applications in the catering industry or environments with grease. Note: the fan must be operated using a frequency converter, which can optionally be controlled via a variable potentiometer.



MPS 355 D4 F4 30

  • Backward curved centrifugal impeller

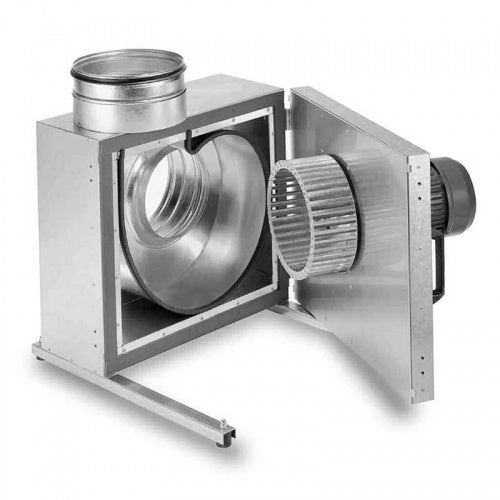

  • Swing out fan unit

  • Sheet steel housing double-walled, 40 mm mineral wool

  • IE3 motor outside the airflow, frequency controllable

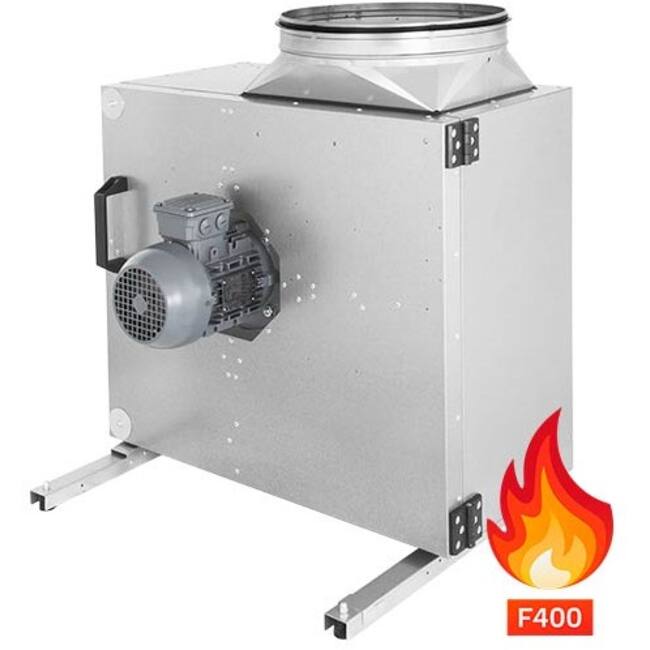

  • Smoke extract fan F400, 200 °C continuous operation

  • With condensate and grease drain

For easy maintenance, the energy-efficient box fan can be quickly opened, and it also allows for condensation and grease removal. The MPS DF series offers airflow capacities from 1960 m³/h up to 11,840 m³/h.

Specifications

  • Number of phases: 3~

  • Number of poles: 4

  • Type of motor control: F

  • Category code: 35

  • Weight: 54.7 kg

  • IP Motor: IP55

  • Insulation Class Motor: F

  • Max. Operating Current: 1.4 A

  • Max. pressure: 820 Pa

  • Max. Air Volume: 4350 m³/h

  • Max. Current Consumption: 1.4 A

  • Max. power consumption: 775 W

  • Max. Static Efficiency: 53.9 %

  • Max. allowed Frequency (3˜ motors): 70 Hz

  • Max. allowed Medium Temperature: 200 °C

  • Max. allowed Medium Temperature at Rated Current: 200 °C

  • Max. allowed Ambient Temperature: 50 °C

  • Max. allowed Ambient Temperature at Rated Current: 50 °C

  • Max. number of revolutions: 2060 1/min

  • Max. Total Efficiency: 57.6 %

  • Min. Operating Temperature: -20 °C

  • Motor type: 3~

  • Nominal frequency: 50 Hz

  • Rated Speed: 1970 1/min

  • Nominal power consumption: 775 W

  • Nominal voltage: 400 V

  • Nominal current: 1.3 A

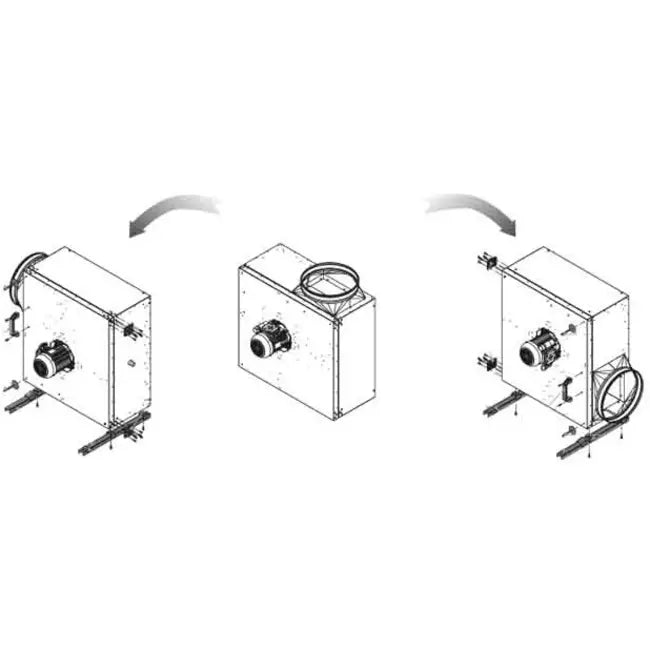

  • Direction of blow out: Shifted by 90° compared to suction
