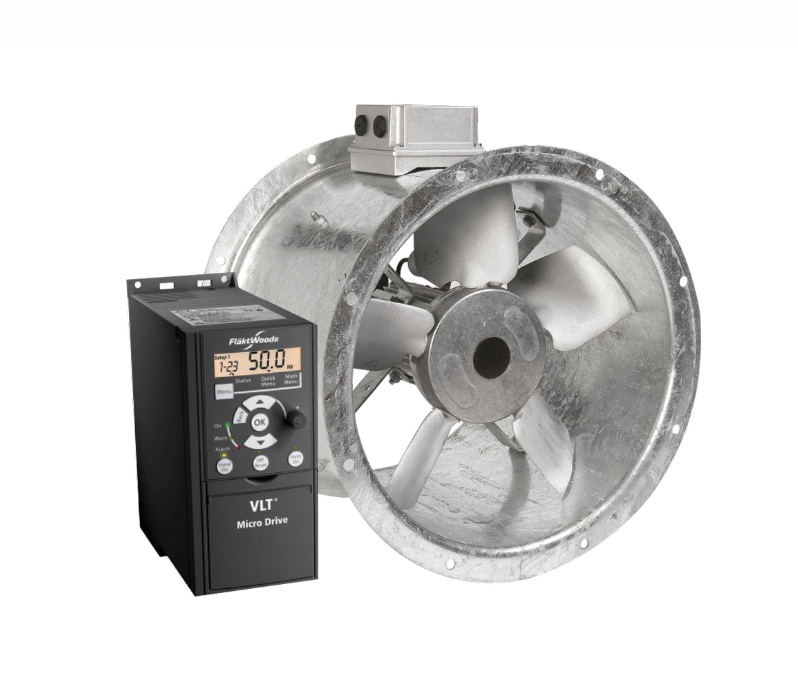

High-Performance Compact Fan for Kitchen Canopy Systems
The Woods MaXfan Compac is engineered specifically for kitchen canopy ventilation, offering outstanding performance, efficiency, and control in a compact and robust package. With full inverter compatibility, it ensures reliable operation, simple installation, and compliance with DW172 and Defra standards.
High Performance & Pressure: Single motor and impeller configuration delivering airflow volumes up to 1.44 m³/s (5,184 m³/h).
Inverter Control: Fully compatible with 1Ph supply using a matched inverter (3Ph motor). Pre-programmed for easy, straightforward setup.
Compact Robust Design: Lightweight, corrosion-resistant, and DW172 compliant—ideal for tight spaces and professional kitchens.
Quiet & Efficient: Low breakout noise levels combined with high-efficiency IE2 motors for reduced energy use and sound output.
IE2 Motor Efficiency: Energy-saving motor with IP55 rating and Class F insulation.
Temperature Tolerant: Operates in ambient temperatures up to 80°C (size-dependent).
Overheat Protection: Built-in safety as standard for extended durability and reliability.
Galvanised Steel Casing: Provides high resistance to corrosion and is suitable for both internal and external installations.
Flexible Installation: Suitable for vertical and horizontal shaft operation.
High-Efficiency Aerofoil Design: Features a smoothed hub and clamp plate for optimal airflow and noise reduction.
Precision Casting: Die-cast aluminium impellers are X-ray inspected (Real Time Radiography) for structural integrity and consistency.
Variable Speed Control: Pitch angles designed for efficient control via frequency inverter.
Enclosed Air Stream Rated: Constructed with aluminium or cast iron; pad-mounted fixings as standard.
IP55 Protection: Includes removable drain plugs and sealed-for-life bearings with wide-temperature grease.
Advanced Safety: Thermistor OHP (overheat protection) fitted as standard.
Speed Flexibility: Motor speed can be reduced to 20% of maximum via frequency inverter.
Tested in accordance with ISO5801 and BS848
DW172 and Defra compliant
Motor and terminal block rated to IP55
For assistance with selecting the right MaXfan Compac model or custom specifications, please contact our team. We’re committed to helping you get the right solution—on time and hassle-free.
