MPS 315 D4 F4 30 – Smoke extractor box fan swing-out and frequency-controlled – Ruck



The Ruck smoke box fan (MPS DF series) features a frequency-controlled motor mounted outside the airflow. This design ensures that contaminated air or gases up to 200 °C do not pass through the motor, and the fan can even tolerate brief exposure to 400 °C. Thanks to this setup, the smoke box fan is ideal for catering environments or applications involving grease. Note: operation requires a frequency converter, which can optionally be adjusted via a variable potentiometer.



MPS 315 D4 F4 30

  • Backward curved centrifugal impeller

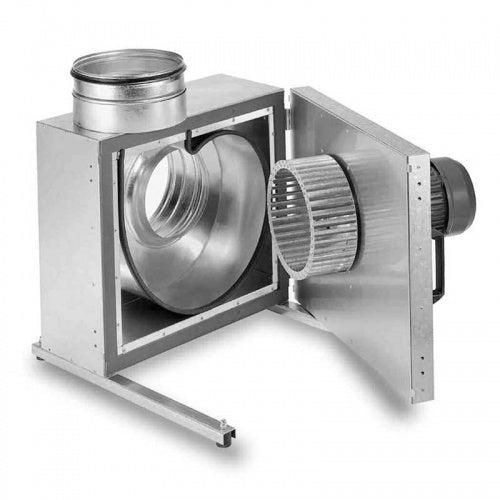

  • Swing out fan unit

  • Sheet steel housing double-walled, 40 mm mineral wool

  • IE3 motor outside the airflow, frequency controllable

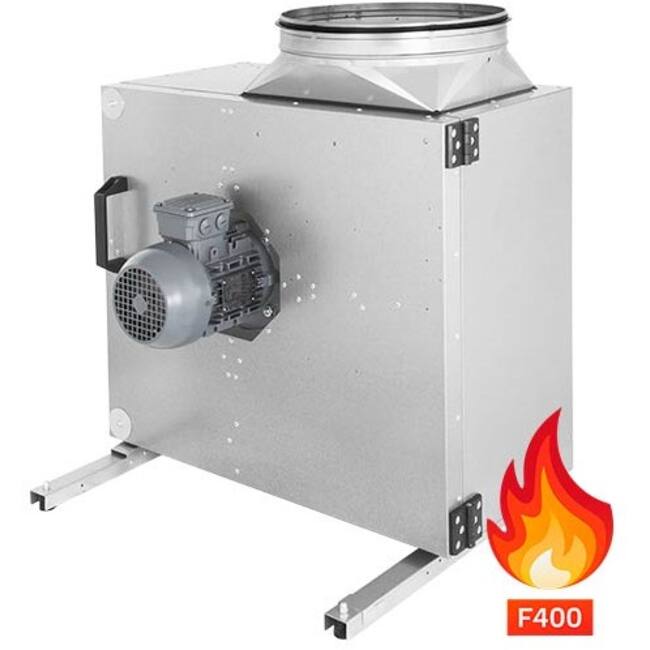

  • Smoke extract fan F400, 200 °C continuous operation

  • With condensate and grease drain

Maintenance is simple—the energy-efficient fan is easy to open and allows for condensation and grease removal. The MPS DF series is available in capacities from 1960 m³/h up to 11,840 m³/h.

Specifications

  • Number of phases: 3~

  • Number of poles: 4

  • Type of motor control: F

  • Category code: 35

  • Weight: 52.9 kg

  • IP Motor: IP55

  • Insulation Class Motor: F

  • Max. Operating Current: 1.2 A

  • Max. pressure: 840 Pa

  • Max. Air Volume: 3580 m³/h

  • Max. Current Consumption: 1.2 A

  • Max. power consumption: 669 W

  • Max. Static Efficiency: 53.5 %

  • Max. allowed Frequency (3˜ motors): 80 Hz

  • Max. allowed Medium Temperature: 200 °C

  • Max. allowed Medium Temperature at Rated Current: 200 °C

  • Max. allowed Ambient Temperature: 50 °C

  • Max. allowed Ambient Temperature at Rated Current: 50 °C

  • Max. number of revolutions: 2360 1/min

  • Max. Total Efficiency: 56 %

  • Min. Operating Temperature: -20 °C

  • Motor type: 3~

  • Nominal frequency: 50 Hz

  • Rated Speed: 2280 1/min

  • Nominal power consumption: 669 W

  • Nominal voltage: 400 V

  • Nominal current: 1.1 A

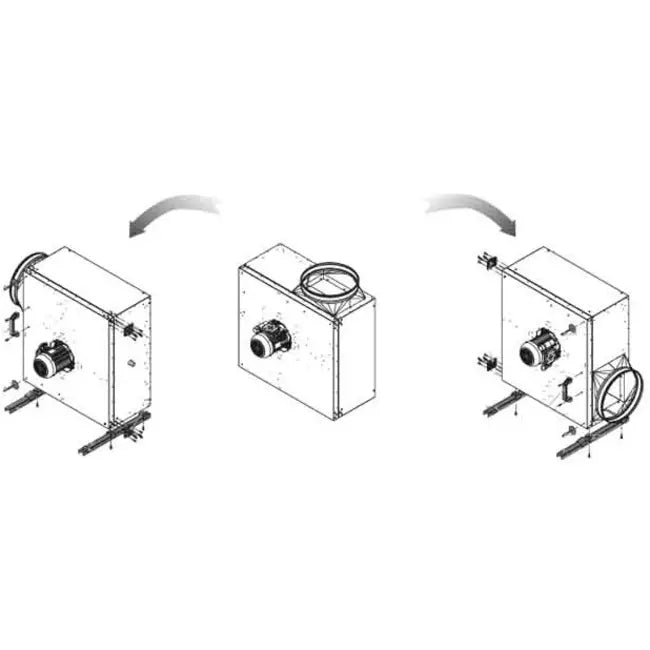

  • Direction of blow out: Shifted by 90° compared to suction
