MPS 315 D2 F4 30 – Smoke extractor box fan swing-out and frequency-controlled – Ruck



The Ruck smoke box fan (MPS DF series) features a frequency-driven motor that is installed outside the air stream. This design prevents contaminated or hot air—up to 200 °C—from passing through the motor, and the fan can even withstand temporary temperatures of up to 400 °C. Thanks to this configuration, the fan is especially suitable for the catering industry and environments with grease-laden air. Note: operation requires a frequency converter, which can optionally be controlled via a variable potentiometer.



MPS 315 D2 F4 30

  • Backward curved centrifugal impeller

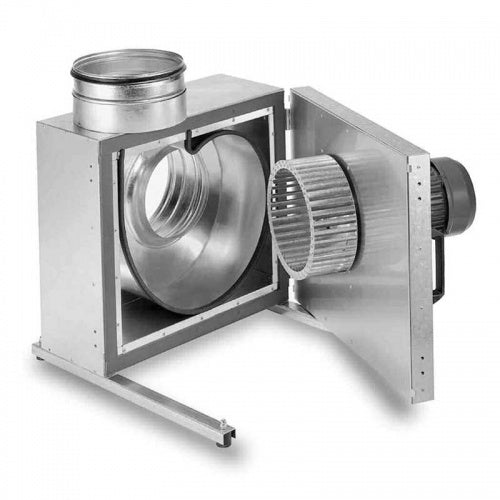

  • Swing out fan unit

  • Sheet steel housing double-walled, 40 mm mineral wool

  • IE3 motor outside the airflow, frequency controllable

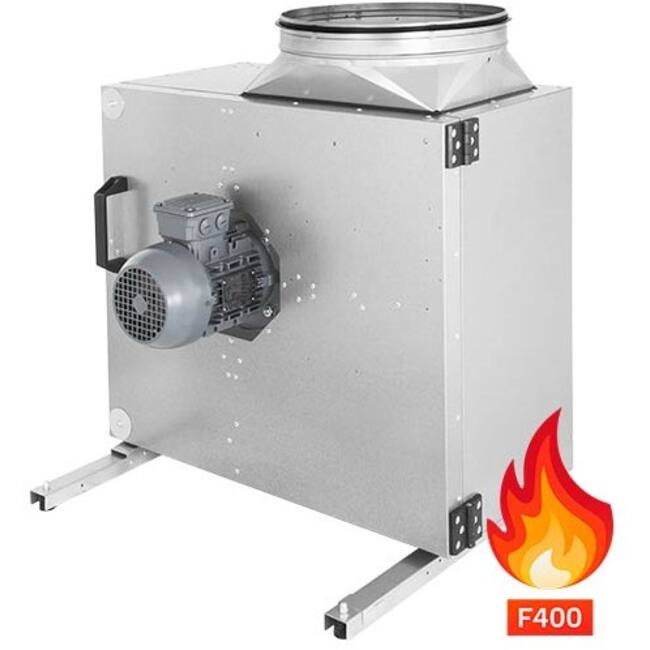

  • Smoke extract fan F400, 200 °C continuous operation

  • With condensate and grease drain

Maintenance is simple, as the energy-efficient fan can be easily opened for cleaning, including condensation and grease removal. The MPS DF series offers capacities from 1,960 m³/h up to 11,840 m³/h.

Specifications

  • Number of phases: 3~

  • Number of poles: 2

  • Type of motor control: F

  • Category code: 35

  • Weight: 52.9 kg

  • IP Motor: IP55

  • Insulation Class Motor: F

  • Max. Operating Current: 2.4 A

  • Max. pressure: 1300 Pa

  • Max. Air Volume: 4520 m³/h

  • Max. Current Consumption: 2.4 A

  • Max. power consumption: 1221 W

  • Max. Static Efficiency: 57.8 %

  • Max. allowed Frequency (3˜ motors): 50 Hz

  • Max. allowed Medium Temperature: 200 °C

  • Max. allowed Medium Temperature at Rated Current: 200 °C

  • Max. allowed Ambient Temperature: 50 °C

  • Max. allowed Ambient Temperature at Rated Current: 50 °C

  • Max. number of revolutions: 2950 1/min

  • Max. Total Efficiency: 60.2 %

  • Min. Operating Temperature: -20 °C

  • Motor type: 3~

  • Nominal frequency: 50 Hz

  • Rated Speed: 2860 1/min

  • Nominal power consumption: 1221 W

  • Nominal voltage: 400 V

  • Nominal current: 2.3 A

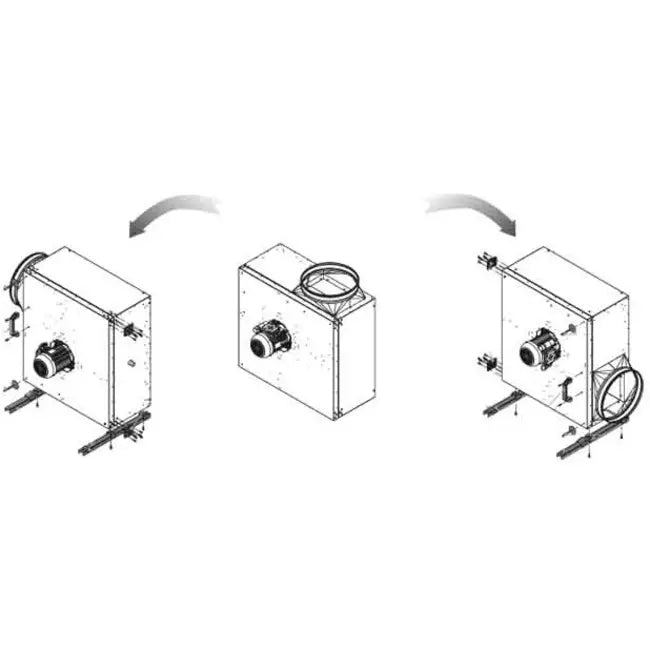

  • Direction of blow out: Shifted by 90° compared to suction
