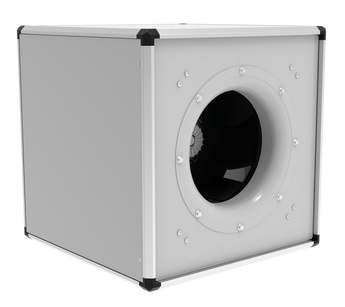

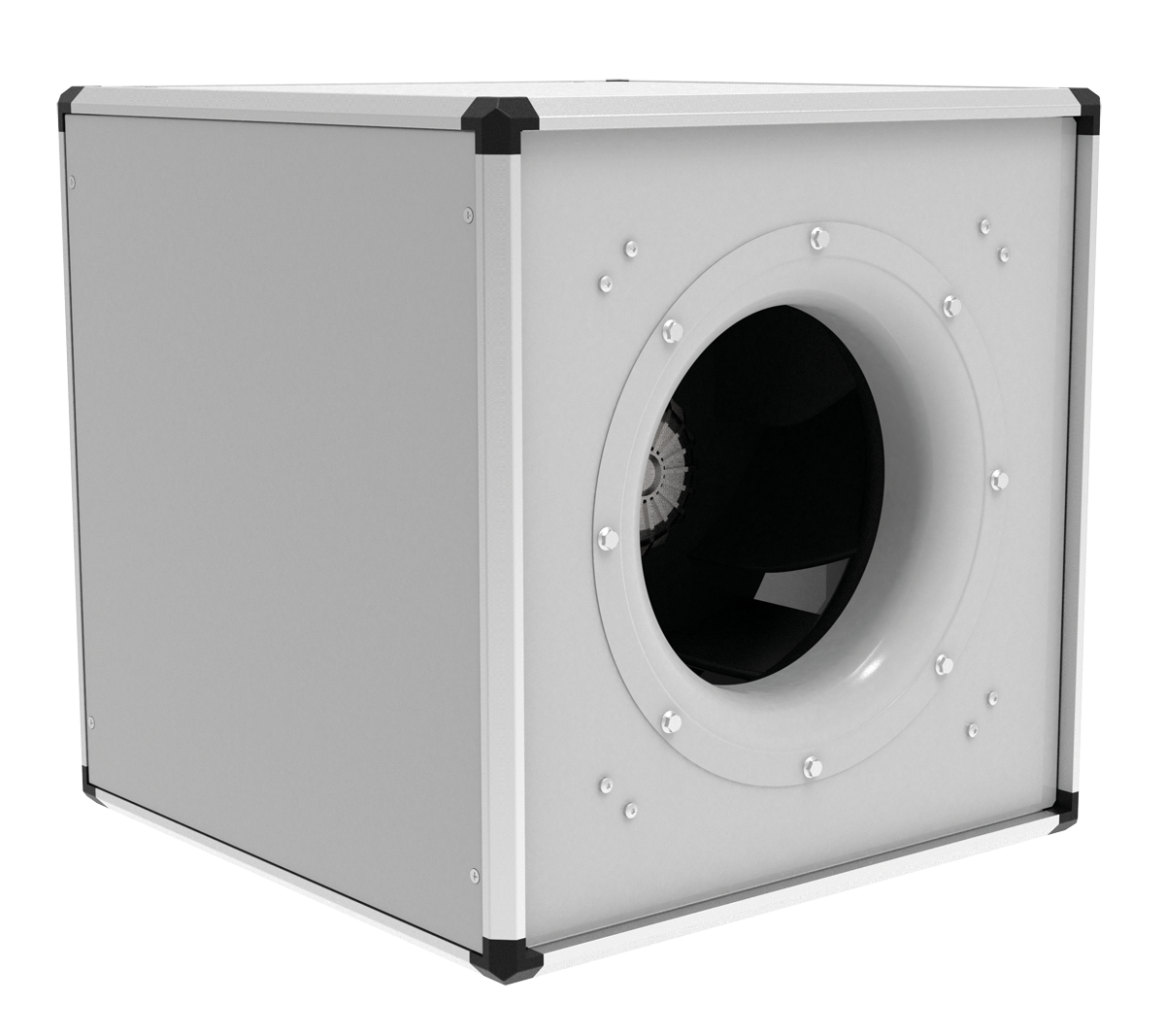

Flakt Woods ePowerBox EC 630/4/3 – BE630016 – 3-Phase Powerbox Fan
Pickup available at Ducting Supplies
Usually ready in 2 hours
ePowerBox EC 630/4/3 – BE630016 – Experience superior airflow with the Powerbox Fan EC 3ph from Flakt Woods.
Key Features:
- Airflow of up to 5.4 m³/s
- Static pressures reaching 840 Pa
- Equipped with controllable EC motors
- Flexible with multiple outlet orientations
Electrical Supply: Compatible with 220-240V/50Hz/1PH & 380-420V/50Hz/3PH
Temperature Range: Operates at a maximum temperature of up to +55°C (model dependent)
Available Sizes: Choose from 315, 355, 400, 450, 500, 560, 630, and 710 mm
Durable Construction: Features a galvanized casing made from sheet steel with double chamber aluminum profiles and 20 mm thick fiberglass acoustic insulation.
High-Performance Impeller: Backward curved centrifugal impellers crafted from plastic and aluminum for optimal efficiency.
Dynamic Motor: EC motors are dynamically balanced to quality standard G2,5 DIN ISO 19410.
Speed Control: Easily adjustable speed with a 0-10 volt potentiometer.
For more details, download the product PDF: ePOWERBOX EC
