Flakt Woods MaXfan 2 - Two-Stage Axial Fan High Pressure Long Cased Axial Extract Fan - Single Phase

£1,631.99
Diameteres: 400mm - 40JM (EQ411453)

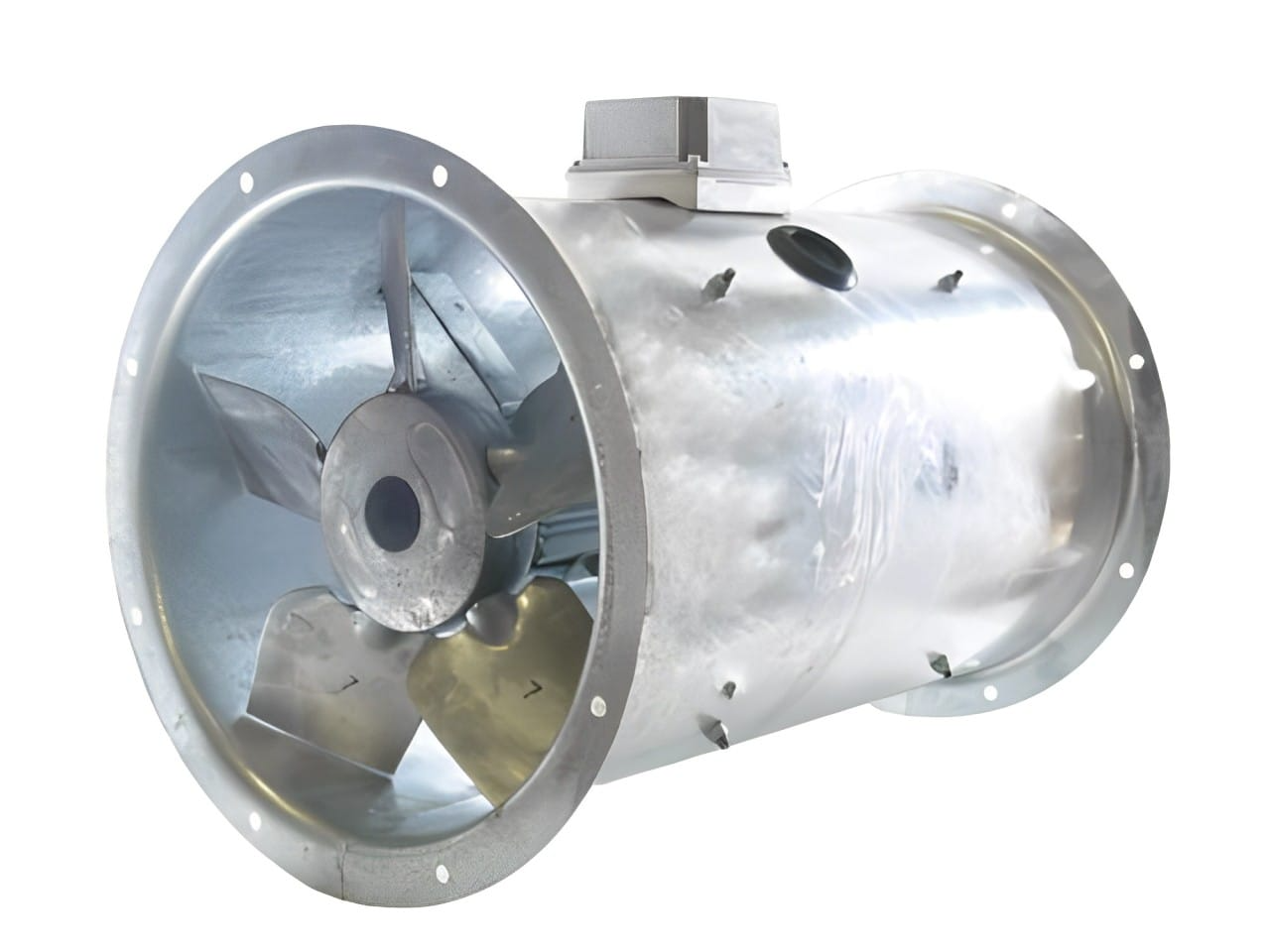

The Fläkt Woods MaxFan is a powerful, high-pressure cased axial flow extract fan, engineered for performance, reliability, and versatility. Part of the renowned JmMax fan range, this two-stage axial fan is ideal for environments where enhanced airflow is needed—especially in systems requiring filtration, odour control, or long duct runs.

Designed for use on a single-phase (240V) power supply, the MaxFan is fully speed controllable, offering flexibility and precise airflow regulation for a wide range of applications.

✅ Key Features:

  • Two-Stage Axial Fan Design
    Delivers superior performance under higher static pressure conditions.

  • Single-Phase Power Supply (240V)
    Suitable where three-phase power is not available.

  • Fully Speed Controllable
    Easily integrated with variable speed controls for optimal performance.

  • Supplied Fully Assembled
    Ready to install with no additional assembly required.

  • Rugged Construction
    Spun hot-dipped galvanised steel casing for exceptional corrosion resistance—suitable for indoor and outdoor installation.

  • Die-Cast Aluminium Impeller
    Durable, high-efficiency impeller designed for continuous use.

  • Motor Protection & Safety
    Totally enclosed motor with Class F insulation and IP55 protection rating.

  • Wide Operating Temperature Range
    Suitable for environments from -40°C to +50°C.

Applications:

  • Commercial kitchens and catering facilities

  • Ventilation systems with pre-filters and carbon filters

  • High-resistance ducted systems

  • Industrial extract systems requiring reliable high pressure airflow

Technical Range:

  • Sizes Available: 315mm to 630mm

  • Air Volumes: Low to high

  • Static Pressures: Low to high

  • Mounting: Internal or external
