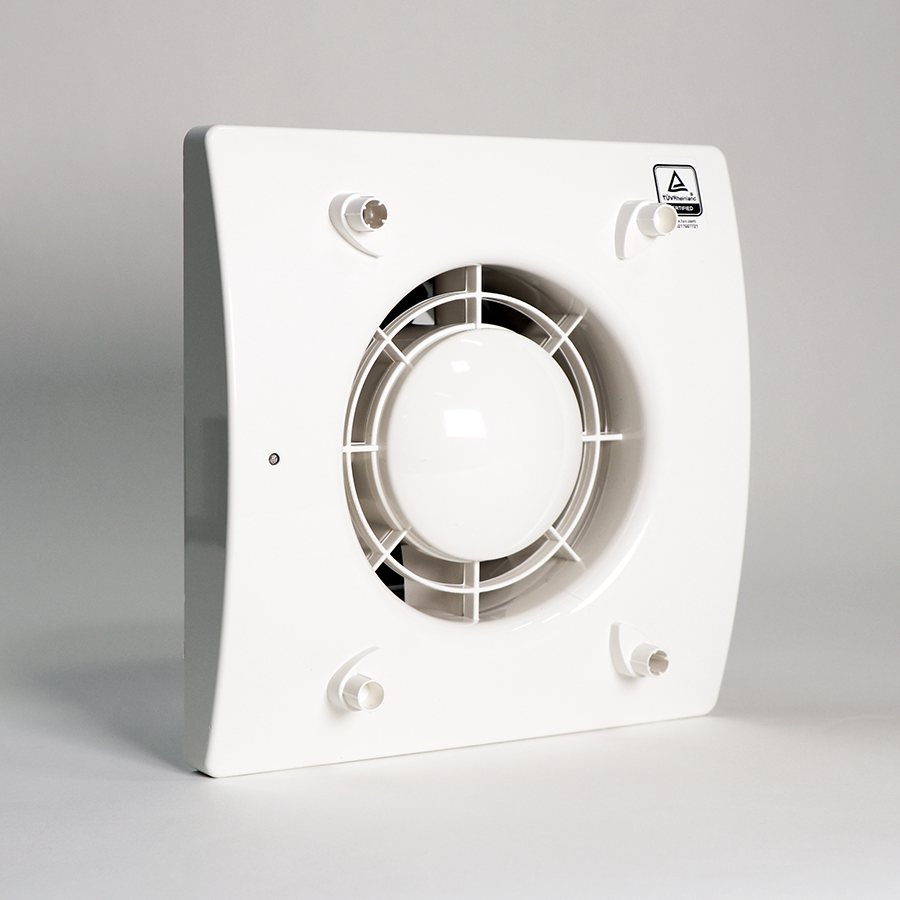

Elta Trade LUXE 150 T & HT – 150mm High-Quality Intermittent Extract Fan with Timer
The Luxe Extractor Fan is a stylish and efficient intermittent extract fan designed for residential and light commercial environments. Perfect for wall, ceiling, or window mounting, this fan extracts stale air directly outside or through short-length ducting, improving indoor air quality and providing better health and comfort.
Product Overview
The Luxe Extractor Fan is a high-performance, efficient solution designed to tackle moisture and indoor pollutants in a variety of spaces. With its stylish, modern design and efficient functionality, it’s the perfect choice for bathrooms, kitchens, and utility rooms. Available in 100mm, 125mm, and 150mm variants, this fan offers a quiet, powerful ventilation solution with a removable front fascia for easy cleaning and maintenance.
Key Features
- Integrated Run-On Timer: The fan features an adjustable run-on timer (1-25 minutes), ensuring continuous operation for an optimal duration after use.
- Low Power Consumption: The 100mm model consumes only 8 W of power, making it an efficient and environmentally friendly option for improving ventilation.
- Optional Humidity Sensor: Available with an adjustable humidity sensor (50%-95% RH) to activate the fan when moisture levels exceed the set threshold.
- Stylish Design: Featuring a modern, aesthetically pleasing fascia that is easily removed for cleaning without the need for tools.
- Back-Draught Shutter: An integral back-draught shutter helps prevent airflow from returning into the room when the fan is not in use.
- IPX4 Rated: Suitable for use in wet rooms, including bathrooms, ensuring safe operation in high-humidity environments.
- Compact and Versatile: Can be mounted on walls, ceilings, or windows (window mounting requires window kit), providing flexibility for various installation needs.
Applications
- Residential Use: Ideal for bathrooms, kitchens, and utility rooms where moisture and pollutants need to be extracted.
- Light Commercial Use: Perfect for small commercial spaces that require quiet and effective ventilation.
- Moisture Control: Excellent for spaces like bathrooms and kitchens, where humidity control is essential to prevent condensation and mould growth.
Technical Specifications
| Model | LUXE100 | LUXE125 | LUXE150 |
|---|---|---|---|
| □A | 164 mm | 184 mm | 218 mm |
| B | 70 mm | 81 mm | 97 mm |
| C | 46 mm | 48 mm | 52 mm |
| D | 116 mm | 129 mm | 149 mm |
| ØE | 99 mm | 119 mm | 148 mm |
| Weight | 0.6 kg | 0.9 kg | 1.2 kg |
Performance
| Model | LUXE100 | LUXE125 | LUXE150 |
|---|---|---|---|
| Airflow (m³/h max) | 83 | 140 | 253 |
| Airflow (L/s max) | 23.1 | 38.9 | 70.6 |
| Static Pressure (Pa max) | 27 | 40 | 51 |
| Power Consumption (W max) | 8 | 14 | 24 |
| Sound Pressure (dB(A) @ 3m) | 26 | 34 | 42 |
| Ambient Temperature (°C max) | 50 | 50 | 50 |
| Voltage | 220-240V ~ 50/60Hz | 220-240V ~ 50/60Hz | 220-240V ~ 50/60Hz |
Additional Features
- IPX4 Rated: Suitable for bathrooms and other wet rooms.
- Optimised Spigot Support: Prevents distortion and maximises airflow.
- Recyclable Plastic Components: Environmentally friendly design.
- Acoustic Foam Lining: Reduces operational noise for a quieter environment.
- Highly Durable: Made from UV-resistant ABS to ensure long-lasting performance.
Energy Efficiency
The Luxe Extractor Fan is designed with efficiency in mind, offering airflow rates of up to 253 m³/h while consuming minimal power (as low as 8 W). This makes it an environmentally friendly and cost-effective solution for improving air quality while reducing energy consumption. The fan’s low energy usage, coupled with its efficient performance, ensures a reduced carbon footprint and lower utility bills for homeowners and businesses.
