Elta Trade LUXE 100T & 100HT - High Quality Intermittent Extract Fan with Timer

£30.74 (ex VAT)

Shipping calculated at checkout.

Product variants

Quantity

Collection available from Ducting Supplies. Please contact us before collection to confirm stock availability and when your order will be ready.

Usually ready in 24 hours

PRODUCT INFORMATION

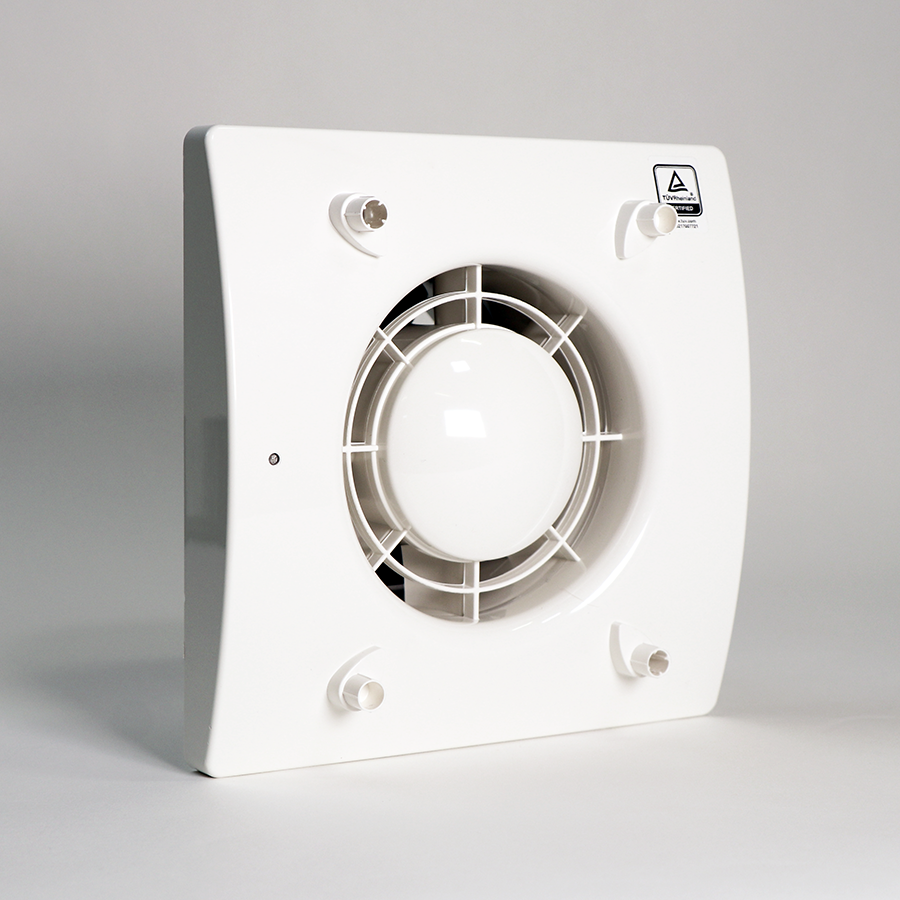

Elta Trade LUXE 100 T & HT – 100mm High-Quality Intermittent Extract Fan with Timer

The Luxe Extractor Fan is a stylish and efficient intermittent extract fan designed for residential and light commercial environments. Perfect for wall, ceiling, or window mounting, this fan extracts stale air directly outside or through short-length ducting, improving indoor air quality and providing better health and comfort.

Product Overview

The Luxe Extractor Fan is a high-performance, efficient solution designed to tackle moisture and indoor pollutants in a variety of spaces. With its stylish, modern design and efficient functionality, it’s the perfect choice for bathrooms, kitchens, and utility rooms. Available in 100mm, 125mm, and 150mm variants, this fan offers a quiet, powerful ventilation solution with a removable front fascia for easy cleaning and maintenance.

Key Features

Integrated Run-On Timer: The fan features an adjustable run-on timer (1-25 minutes), ensuring continuous operation for an optimal duration after use.
Low Power Consumption: The 100mm model consumes only 8 W of power, making it an efficient and environmentally friendly option for improving ventilation.
Optional Humidity Sensor: Available with an adjustable humidity sensor (50%-95% RH) to activate the fan when moisture levels exceed the set threshold.
Stylish Design: Featuring a modern, aesthetically pleasing fascia that is easily removed for cleaning without the need for tools.
Back-Draught Shutter: An integral back-draught shutter helps prevent airflow from returning into the room when the fan is not in use.
IPX4 Rated: Suitable for use in wet rooms, including bathrooms, ensuring safe operation in high-humidity environments.
Compact and Versatile: Can be mounted on walls, ceilings, or windows (window mounting requires window kit), providing flexibility for various installation needs.

Applications

Residential Use: Ideal for bathrooms, kitchens, and utility rooms where moisture and pollutants need to be extracted.
Light Commercial Use: Perfect for small commercial spaces that require quiet and effective ventilation.
Moisture Control: Excellent for spaces like bathrooms and kitchens, where humidity control is essential to prevent condensation and mould growth.

Technical Specifications

Model	LUXE100	LUXE125	LUXE150
□A	164 mm	184 mm	218 mm
B	70 mm	81 mm	97 mm
C	46 mm	48 mm	52 mm
D	116 mm	129 mm	149 mm
ØE	99 mm	119 mm	148 mm
Weight	0.6 kg	0.9 kg	1.2 kg

Performance

Model	LUXE100	LUXE125	LUXE150
Air-flow (m³/h max)	83	140	253
Air-flow (L/s max)	23.1	38.9	70.6
Static Pressure (Pa max)	27	40	51
Power Consumption (W max)	8	14	24
Sound Pressure (dB(A) @ 3m)	26	34	42
Ambient Temperature (°C max)	50	50	50
Voltage	220-240V ~ 50/60Hz	220-240V ~ 50/60Hz	220-240V ~ 50/60Hz

Additional Features

IPX4 Rated: Suitable for bathrooms and other wet rooms.
Optimised Spigot Support: Prevents distortion and maximises airflow.
Recyclable Plastic Components: Environmentally friendly design.
Acoustic Foam Lining: Reduces operational noise for a quieter environment.
Highly Durable: Made from UV-resistant ABS to ensure long-lasting performance.

Energy Efficiency

The Luxe Extractor Fan is designed with efficiency in mind, offering airflow rates of up to 253 m³/h while consuming minimal power (as low as 8 W). This makes it an environmentally friendly and cost-effective solution for improving air quality while reducing energy consumption. The fan’s low energy usage, coupled with its efficient performance, ensures a reduced carbon footprint and lower utility bills for homeowners and businesses.

Delivery & Collection

Next Day Delivery
Stock items ordered before 1pm can be dispatched on a next working day delivery service, subject to stock availability and carrier service. Delivery charges are calculated at checkout.

Collection Available
Orders can be collected from our Haslingden, Lancashire warehouse. Please contact us before travelling to confirm your order is ready for collection.

Downloads & Technical Documents

↓ Product Data Sheet Technical specifications, performance data and product information. DOWNLOAD DATA SHEET →
