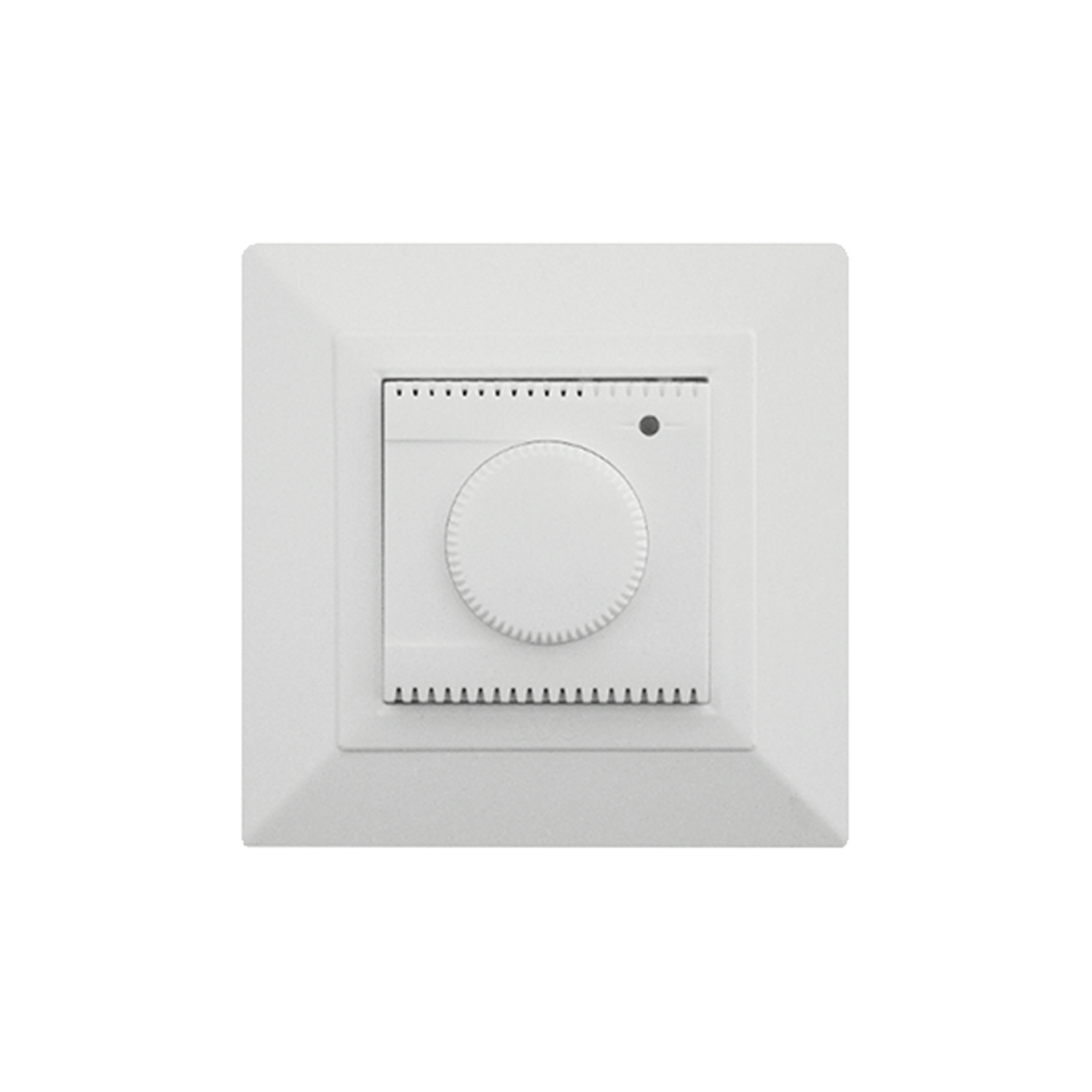

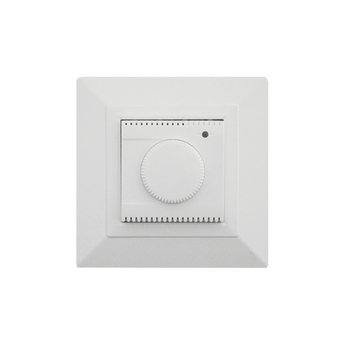

Elta Humidity Sensor - SEN-HY-I
The Elta Humidity Sensor - SEN-HY-I is a high-performance, hard-wired humidity sensor (humidistat) control switch designed for efficient ventilation control. This sensor is perfect for managing areas with high moisture content, such as bathrooms and utility rooms, by automatically activating the ventilation unit when the humidity rises. It can also trigger the boost function on compatible units.
Product Overview
The Elta SEN-HY-I Humidity Sensor ensures effective moisture control within indoor environments. By monitoring the humidity levels and activating ventilation systems when needed, it helps maintain a healthy indoor climate, reducing the risk of mould and mildew growth. With a user-friendly front graduated knob, this sensor allows you to easily adjust the humidity threshold between 50% and 95% relative humidity (R.H.), making it an ideal choice for managing ventilation in both residential and commercial properties.
Key Features
- Automatic Ventilation Control: Activates the ventilation unit automatically when the humidity level exceeds the preset threshold.
- Humidity Threshold Adjustment: Adjustable range from 50% to 95% R.H. via a convenient front knob for precise control.
- Integral Over-Run Timer: Timer can be set from 1 to 25 minutes, allowing the system to run for a specified period after the humidity level drops.
-
Clear LED Indicators: The front yellow LED indicates the sensor's status:
- On: Humidity level is higher than the preset level.
- Blinking: The relay is on, but the humidity is below the threshold (timer in progress).
- IP40 Protection: Designed to withstand typical indoor environments, with a protection rating of IP40.
- Energy Efficient: Reduces energy consumption by ensuring ventilation operates only when required.
- Easy Integration: Compatible with a range of ventilation units and systems.
Applications
- Residential Use: Ideal for bathrooms, kitchens, utility rooms, and other areas prone to moisture.
- Commercial Use: Suitable for small to medium-sized commercial spaces that require effective humidity management.
Specifications
| Feature | Specification |
|---|---|
| Model | SEN-HY-I |
| Humidity Range | Adjustable between 50% and 95% R.H. |
| Power Supply | 230V ~ 50/60Hz |
| Maximum Load | 2A |
| Ambient Temperature | Operates from 0°C to +35°C, with relative humidity up to 95% at 35°C |
| Timer | Adjustable from 1 to 25 minutes |
| LED Indicator | Yellow LED for status indication (on or blinking) |
| Protection | IP40 |
Benefits
- Improved Indoor Air Quality: Ensures consistent air quality by managing humidity levels and preventing moisture-related issues.
- Energy Efficient: Operates only when necessary, reducing energy consumption and ensuring a comfortable indoor environment.
- Easy to Use: Simple to adjust the humidity threshold and timer settings, making it user-friendly and versatile.
- Long-Lasting: Built with durable materials, offering reliable performance for years to come.
Energy Efficiency
The Elta SEN-HY-I Humidity Sensor helps optimise energy use by controlling the activation of ventilation based on real-time humidity levels. This ensures your system only runs when required, making it an eco-friendly solution that reduces both energy consumption and utility costs.
