Curved Shoe (TBS)

£9.99 (ex VAT)

Shipping calculated at checkout.

Diameter

Product variants

Quantity

Collection available from Ducting Supplies. Please contact us before collection to confirm stock availability and when your order will be ready.

Usually ready in 24 hours

Diameter

PRODUCT INFORMATION

Manufactured from high-quality galvanised steel, this collar saddle provides a strong, durable branch connection for circular ductwork systems. Designed for professional HVAC and ventilation installations, it is suitable for low, medium and high-pressure applications and is manufactured in accordance with DW144 ductwork standards.

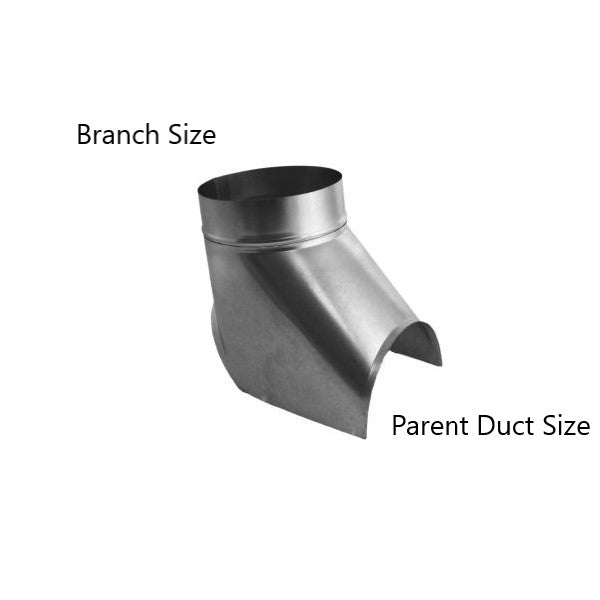

Sizing

First measurement = Branch Diameter
Second measurement = Parent Duct Diameter

For example, 200mm × 315mm represents a 200mm branch connection designed to fit onto 315mm diameter parent ductwork.

Improved Airflow Design

The profiled saddle design provides a smoother transition from the main duct into the branch, helping to reduce airflow resistance and turbulence compared with a conventional straight collar saddle.

Installation

Cut an appropriately sized opening into the spiral or plain circular ductwork, position the saddle over the opening and secure it using rivets or self-drilling screws.

For an airtight installation, seal around the joint edges using a suitable duct sealant, silicone or acrylic sealing compound.

Key Features

High-quality galvanised steel construction
Designed to suit circular spiral and plain ductwork
Suitable for low, medium and high-pressure systems
DW144 compliant
Profiled design for improved airflow
Quick installation using rivets or self-drilling screws
Creates a strong and reliable branch connection
Suitable for commercial and industrial HVAC installations
