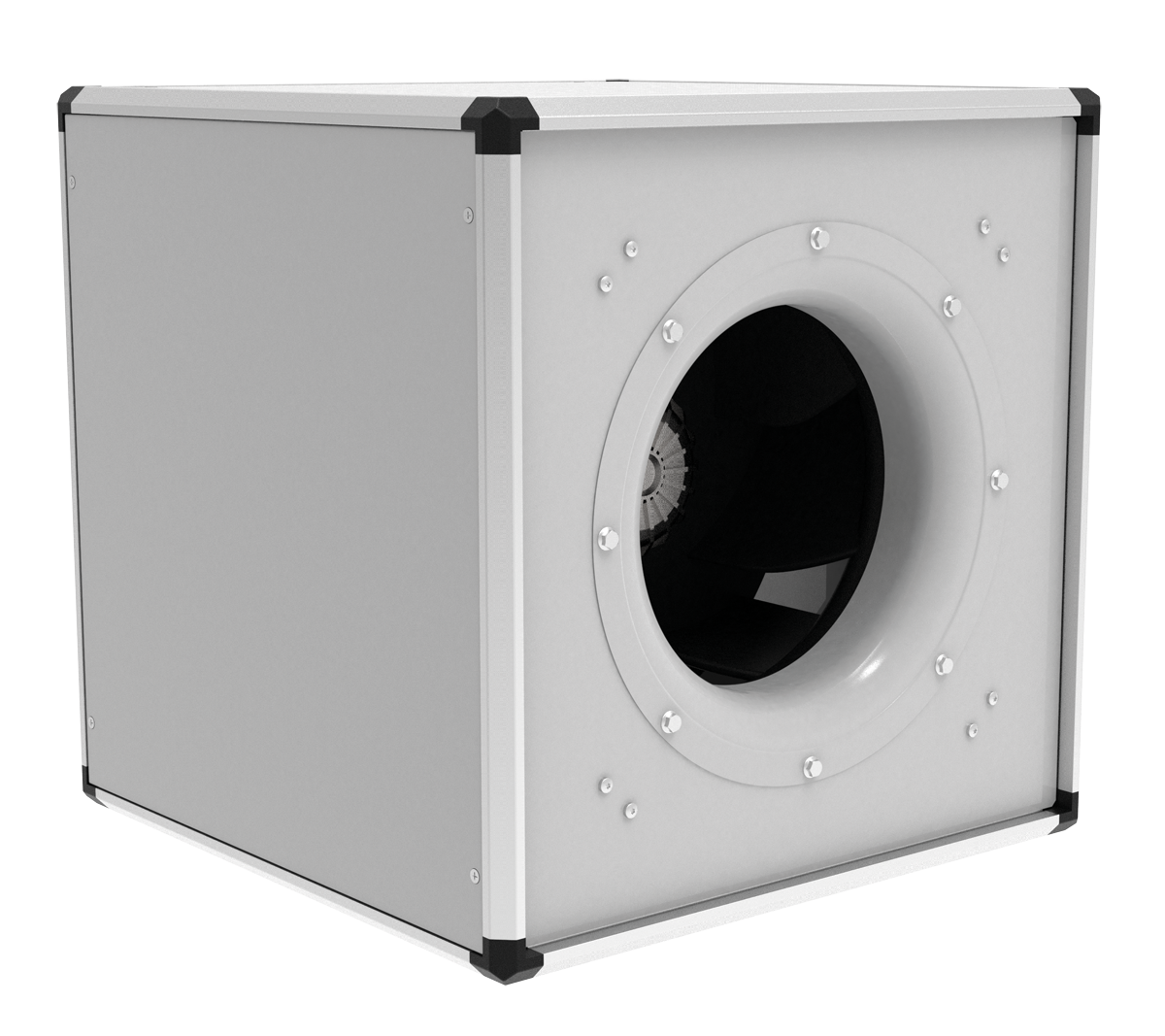

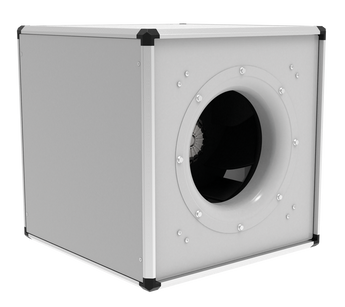

Flakt Woods ePowerBox EC 560/4/3 – BE560017 – 3-Phase Powerbox Fan
Pickup available at Ducting Supplies
Usually ready in 2 hours
ePowerBox EC 560/4/3 – BE560017 – Powerbox Fan EC 3ph – Experience superior airflow with the Flakt Woods ePowerBox, designed for efficiency and versatility.
Key Features:
- Airflow capacity of up to 5.4 m³/s
- Static pressures reaching 840 Pa
- Equipped with controllable EC motors
- Multiple outlet orientations for flexible installation
Electrical Supply: Compatible with 220-240V/50Hz/1PH & 380-420V/50Hz/3PH
Temperature Range: Operates at maximum temperatures up to +55°C (model dependent)
Available Sizes: Choose from 315, 355, 400, 450, 500, 560, 630, and 710 mm
Durable Construction: Galvanized steel casing with double chamber aluminum profiles and 20 mm acoustic insulation for optimal performance.
Advanced Impeller Design: Backward curved centrifugal impellers made of plastic with steel support plates (up to 560 mm); larger models feature aluminum for enhanced efficiency.
Dynamic Motor Balancing: EC external rotor motors are dynamically balanced to quality standard G2,5 DIN ISO 19410.
Variable Speed Control: Easily adjust speed using a 0-10 volt potentiometer.
For more details, download the ePowerBox EC PDF.
