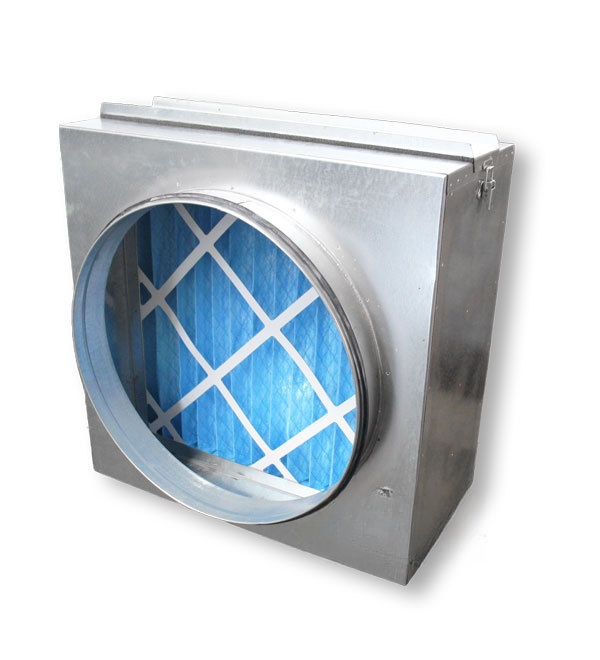

Filter Cassettes for Circular Duct

Filter Cassettes

Filter cassettes are fabricated from 0.7 mm galvanised mild steel and supplied complete with circular spigots at each end, a removable access panel, and a 50 mm Grade 4 pleated panel filter. Units designed to accommodate thicker filters are available on request.

Custom dimensions can be manufactured to specification; however, the standard sizes listed below correspond to the most common single-panel filter configurations.

Select the required Overall Size from the drop-down menu to specify the cassette envelope dimensions.
Next, select the Spigot Size — note that the spigot diameter must be smaller than the cassette’s overall width and height.

For rectangular configurations, the Access Door location can be specified via the relevant drop-down menu

Unless otherwise stated, all filter cassettes are manufactured with a nominal overall length of 250 mm. This length provides adequate plenum space for uniform air distribution across the filter face, thereby optimising effective filtration area and performance.

This item is made to order and cannot be returned. Please ensure that this is the correct product prior to purchasing.
