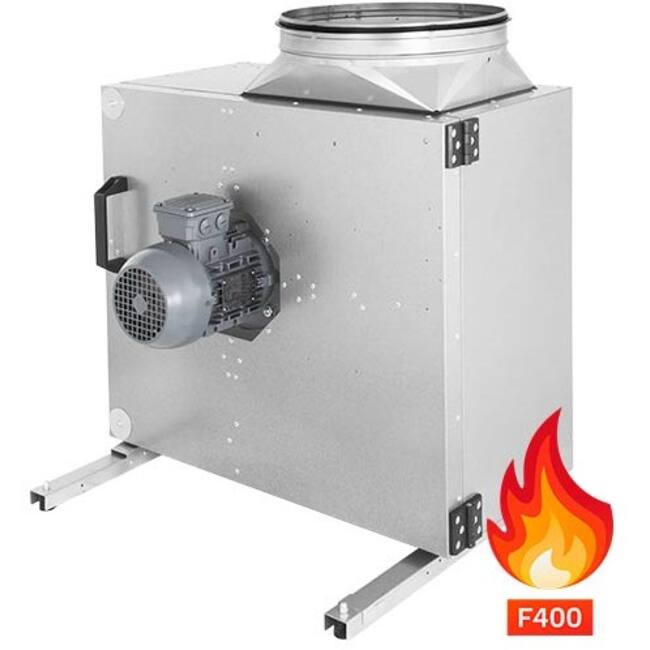

MPS 560 D4 F4 30 – Smoke extractor box fan swing-out and frequency-controlled – Ruck



The Ruck smoke box fan (MPS DF series) features a frequency-controlled motor mounted outside the airflow, preventing dirty or contaminated air of up to 200 °C from passing through the motor. The fan is capable of handling temporary peaks of up to 400 °C, making it especially suitable for the catering industry or applications involving grease. It requires operation via a frequency converter, which can optionally be adjusted using a variable potentiometer.



MPS 560 D4 F4 30

  • Backward curved centrifugal impeller

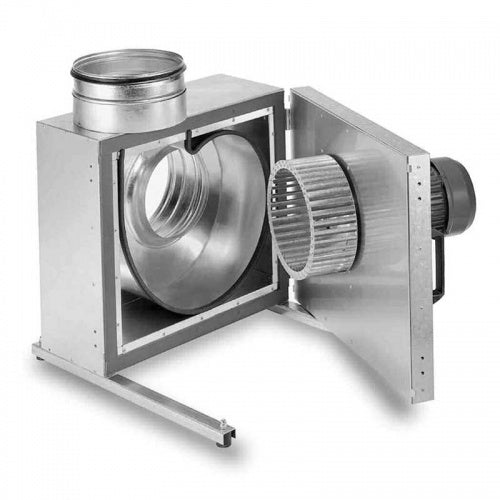

  • Swing out fan unit

  • Sheet steel housing double-walled, 40 mm mineral wool

  • IE3 motor outside the airflow, frequency controllable

  • Smoke extract fan F400, 200 °C continuous operation

  • With condensate and grease drain

Designed for easy maintenance, the fan allows simple access for cleaning, condensation removal, and grease extraction. The MPS DF series offers a wide performance range, with capacities from 1960 m³/h to 11,840 m³/h, providing flexible solutions for various ventilation needs.

Specifications

  • Number of phases: 3~

  • Number of poles: 4

  • Type of motor control: F

  • Category code: 35

  • Weight: 115 kg

  • IP Motor: IP55

  • Insulation Class Motor: F

  • Max. Operating Current: 5 A

  • Max. pressure: 1050 Pa

  • Max. Air Volume: 11840 m³/h

  • Max. Current Consumption: 5 A

  • Max. power consumption: 2577 W

  • Max. Static Efficiency: 55.6 %

  • Max. allowed Frequency (3˜ motors): 50 Hz

  • Max. allowed Medium Temperature: 200 °C

  • Max. allowed Medium Temperature at Rated Current: 200 °C

  • Max. allowed Ambient Temperature: 50 °C

  • Max. allowed Ambient Temperature at Rated Current: 50 °C

  • Max. number of revolutions: 1480 1/min

  • Max. Total Efficiency: 58.1 %

  • Min. Operating Temperature: -20 °C

  • Motor type: 3~

  • Nominal frequency: 50 Hz

  • Rated Speed: 1420 1/min

  • Nominal power consumption: 2577 W

  • Nominal voltage: 400 V

  • Nominal current: 4.7 A

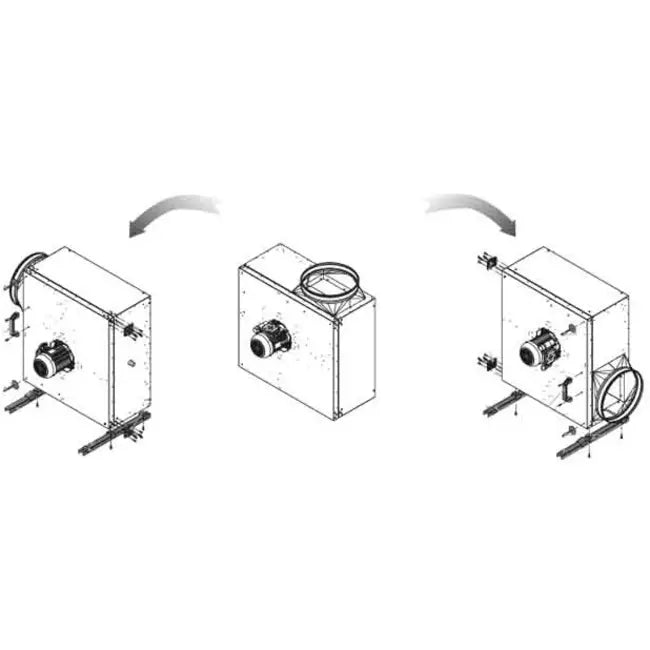

  • Direction of blow out: Shifted by 90° compared to suction
