MPS 500 D4 F4 30 – Smoke extractor box fan swing-out and frequency-controlled – Ruck

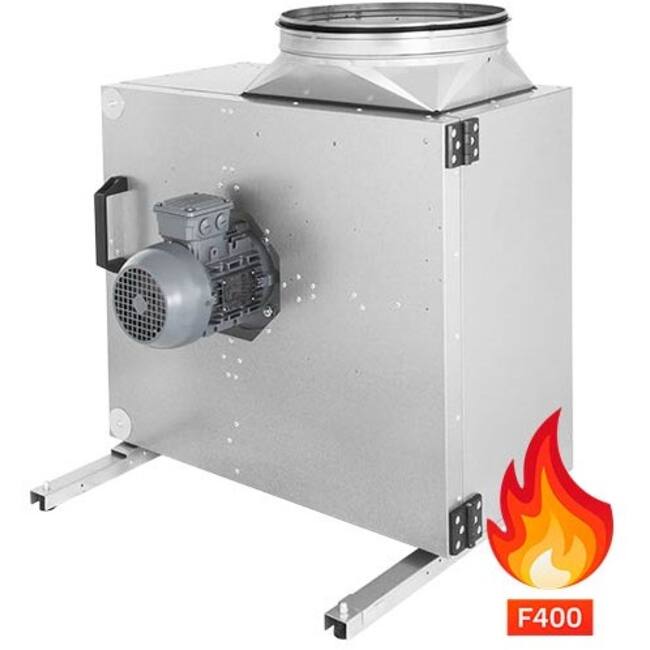

The Ruck smoke box fan (MPS DF series) features a frequency-controlled motor that is positioned outside the air stream. This design prevents dirty or contaminated air, or gases up to 200 °C, from passing through the motor, ensuring durability and reliability. The fan is capable of handling short-term temperatures up to 400 °C, making it ideal for use in catering environments or applications involving grease. Note that the fan requires a frequency converter for operation, which can optionally be adjusted via a variable potentiometer.



MPS 500 D4 F4 30

  • Backward curved centrifugal impeller

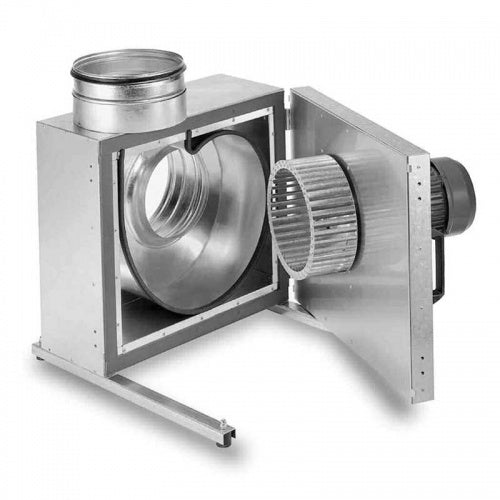

  • Swing out fan unit

  • Sheet steel housing double-walled, 40 mm mineral wool

  • IE3 motor outside the airflow, frequency controllable

  • Smoke extract fan F400, 200 °C continuous operation

  • With condensate and grease drain

Maintenance is straightforward thanks to the fan's easy-open design, which also facilitates condensation and grease removal. The MPS DF series offers a wide range of capacities, from 1960 m³/h up to 11,840 m³/h, accommodating various ventilation needs while providing efficient performance.

Specifications

  • Number of phases: 3~

  • Number of poles: 4

  • Type of motor control: F

  • Category code: 35

  • Weight: 112.7 kg

  • IP Motor: IP55

  • Insulation Class Motor: F

  • Max. Operating Current: 3 A

  • Max. pressure: 855 Pa

  • Max. Air Volume: 7890 m³/h

  • Max. Current Consumption: 3 A

  • Max. power consumption: 1504 W

  • Max. Static Efficiency: 53.7 %

  • Max. allowed Frequency (3˜ motors): 50 Hz

  • Max. allowed Medium Temperature: 200 °C

  • Max. allowed Medium Temperature at Rated Current: 200 °C

  • Max. allowed Ambient Temperature: 50 °C

  • Max. allowed Ambient Temperature at Rated Current: 50 °C

  • Max. number of revolutions: 1490 1/min

  • Max. Total Efficiency: 57.8 %

  • Min. Operating Temperature: -20 °C

  • Motor type: 3~

  • Nominal frequency: 50 Hz

  • Rated Speed: 1450 1/min

  • Nominal power consumption: 1504 W

  • Nominal voltage: 400 V

  • Nominal current: 2.8 A

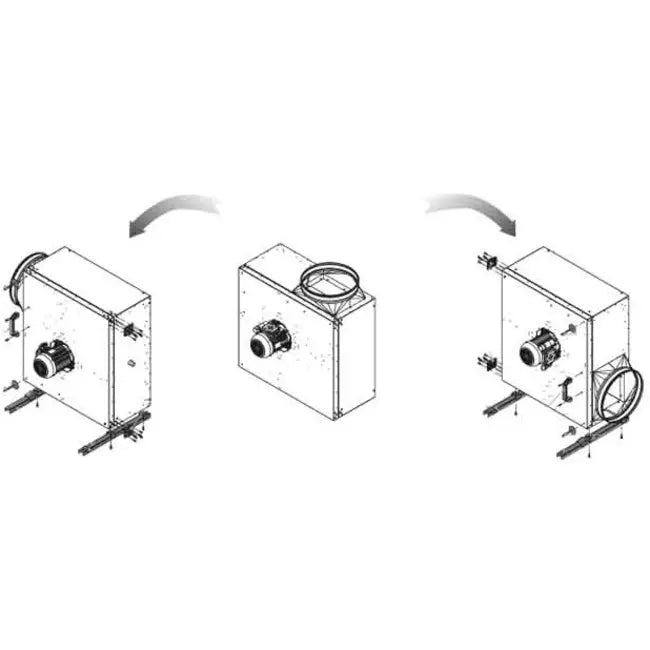

  • Direction of blow out: Shifted by 90° compared to suction
