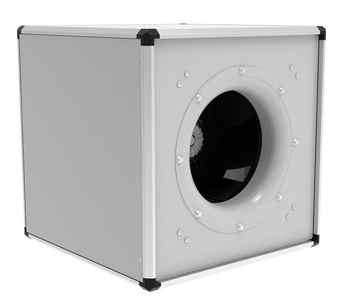

Flakt Woods ePowerBox EC 500/4/3 – BE500019 – 3-Phase Powerbox Fan
Pickup available at Ducting Supplies
Usually ready in 2 hours
ePowerBox EC 500/4/3 – BE500019 – The ultimate Powerbox Fan EC 3ph from Flakt Woods, designed for efficiency and versatility.
Key Features:
- Air flow up to 5.4 m³/s
- Static pressures reaching 840 Pa
- Equipped with controllable EC motors
- Multiple outlet orientations for flexible installation
Electrical Supply: Available in 220-240V/50Hz/1PH & 380-420V/50Hz/3PH
Temperature Range: Operates at maximum temperatures up to +55°C (model dependent)
Sizes: Available in diameters of 315, 355, 400, 450, 500, 560, 630, and 710 mm
Construction: Robust galvanized steel casing with double chamber aluminum profiles and 20 mm thick fiberglass acoustic insulation. One side of the casing is open as standard.
Impeller: Features backward curved centrifugal impellers made of plastic with galvanized steel support plates for sizes up to 560 mm; larger models utilize high-efficiency aluminum impellers.
Motor: Dynamic balance to quality standard G2,5 DIN ISO 19410 ensures optimal performance with EC external rotor motors.
Speed Controller: Easily adjustable speed with a 0-10 volt potentiometer.
For more details, download the product PDF.
