FBS 6 x 55mm Concrete Screw M8 / M10 Rod Hanger Rod
Pickup available at Ducting Supplies
Usually ready in 2 hours

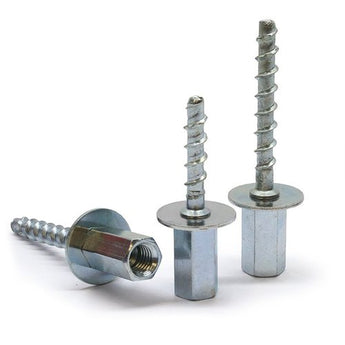

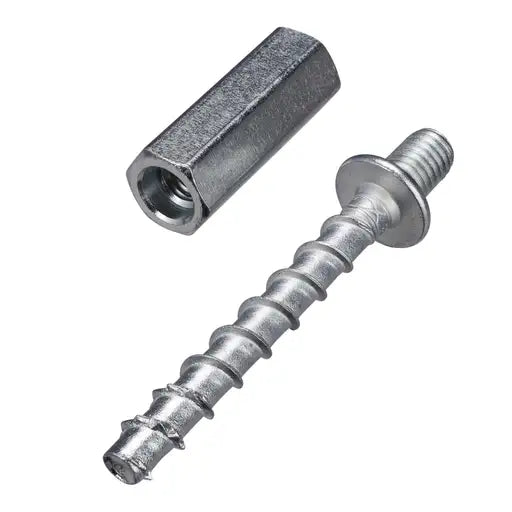

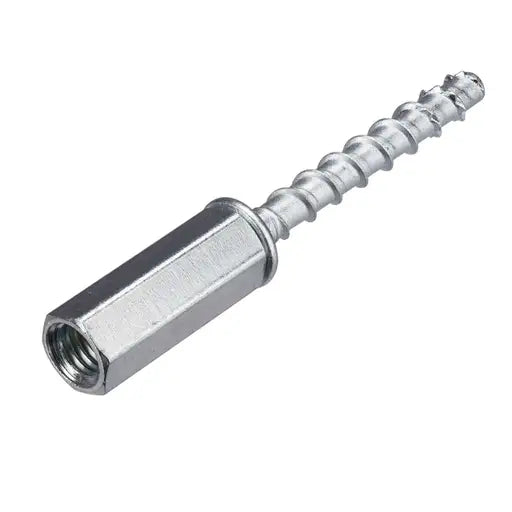

Threaded Rod Hangers with dual M8/M10 internal threads are designed for safety-critical applications and come with European Technical Approval (ETA). These hangers are ideal for suspending building services from both solid and hollow concrete ceilings. They offer high load capacity in both cracked and uncracked concrete.
Features
-
Drill diameter: 6 mm
-
Minimum hole depth through fittings: 60 mm
-
Screw length: 55 mm
-
Embedding depth: 55 mm
-
Width across nut: 13 mm (SW13 drive)
-
Thread design: Step-thread configuration provides maximum versatility for mounting threaded rods or connecting elements (M8 / M10 compatible).
-
Adjustment capability:
-
The approved adjustment feature allows the screw to be unscrewed up to two times to insert a maximum of 10 mm of packing beneath the base plate head or to realign the attached component.
-
After adjustment, the screw can be securely retightened without compromising performance.
-
