Elta SCD Short Cased Axial Fan Three Phase AC SIZES 315MM - 630MM

from £305.00

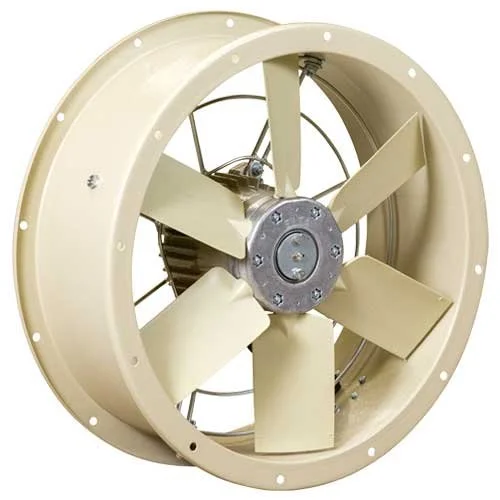

Short Cased Mounted Axial Flow Fan

  • 7 standard sizes from 315mm to 630mm

  • Air volume flow rates up to 4.84 m3/s

  • Static pressures up to 190 Pa

  • Suitable for operating temperatures up to +70°C (speed control +50°C)

  • Available in AC

Size:
Quantity:
Add To Cart

Short Cased Mounted Axial Flow Fan

  • 7 standard sizes from 315mm to 630mm

  • Air volume flow rates up to 4.84 m3/s

  • Static pressures up to 190 Pa

  • Suitable for operating temperatures up to +70°C (speed control +50°C)

  • Available in AC

Short Cased Mounted Axial Flow Fan

  • 7 standard sizes from 315mm to 630mm

  • Air volume flow rates up to 4.84 m3/s

  • Static pressures up to 190 Pa

  • Suitable for operating temperatures up to +70°C (speed control +50°C)

  • Available in AC

Overview

Featuring our high efficiency Series 1 impeller, the Compact SCD makes light work of handling large volumes of air against low resistance. The fan design, construction and finish provide a strong, durable and weatherproofed range.

Downloads

Features and Benefits

Easy Installation

Fans are supplied with a fitted IP55 terminal box, which allows the fan to be positioned conveniently to incoming electrical inputs.

Efficient Performance

Impellers are adjustable pitch aerofoil with blades made from high quality GRP. Combined with increased blade chord and twist, we have achieved 7% higher efficiency, reducing overall energy consumption. Increased blade root reduces stress levels making our range of impellers ideal for arduous fan applications.

Corrosion Resistance

Specially treated against corrosion, powder coated with polyester epoxy paint.

Controllability

A range of transformer voltage controllers are available which provide five speed step control of single phase or three phase motors.

Casing

The all metal fan casing provides a long lasting and robust construction. The units have been constructed from mild steel and suitably treated to ensure full corrosion protection, with both motor and axial impeller mounted within the length of the unit casing. The casing shall have a powder coated polyester epoxy paint finish in Telegrey 1 (RAL 7045).

Motors

Single phase TENV motors shall be Class F insulated, and fitted with integral thermal overload protection. Motors are protected against dust and water ingress to IP55. Three phase multi-voltage TENV motors are wound for either (Delta) 230V/3Ph/50Hz or (Star) 400V/3Ph/50Hz connection, suitable for speed control when used with the Eltadrive VSD range of frequency inverter controls. Fans are suitable for operating temperatures between -20°C and +70°C fixed speed and -20°C and +50°C when used with a speed controller. Electrical connection to the motor shall be provided by an IP55 terminal box.

Impellers

Adjustable pitch increased twist aerofoil impellers are provided with blades made from high quality GRP. Impellers are factory set at an angle to provide maximum performance. The hubs are manufactured from die cast aluminium alloy (LM24). Assembled impellers are to be dynamically balanced to ISO 14694 Grade G6.3.

Control

Speed control shall be via stepped Transformer or Eltadrive VSD, dependant on model. Eltadrive VSD IP20 or Switched IP66 shall provide precise motor control and energy savings. The Eltadrive range of inverters have been designed encompassing the latest technology and combining robustness with reliability. Using an inverter to control fans via sensors to reduce fan speed can provide significant cost-savings through lower energy consumption.

Quality Management

Units are to be designed and manufactured with procedures as defined in BS EN ISO 9001. All Compact SCD units are to be tested to ISO 5801 (airside performance) and BS 848 Part 2 (sound performance).
